Appendix 4

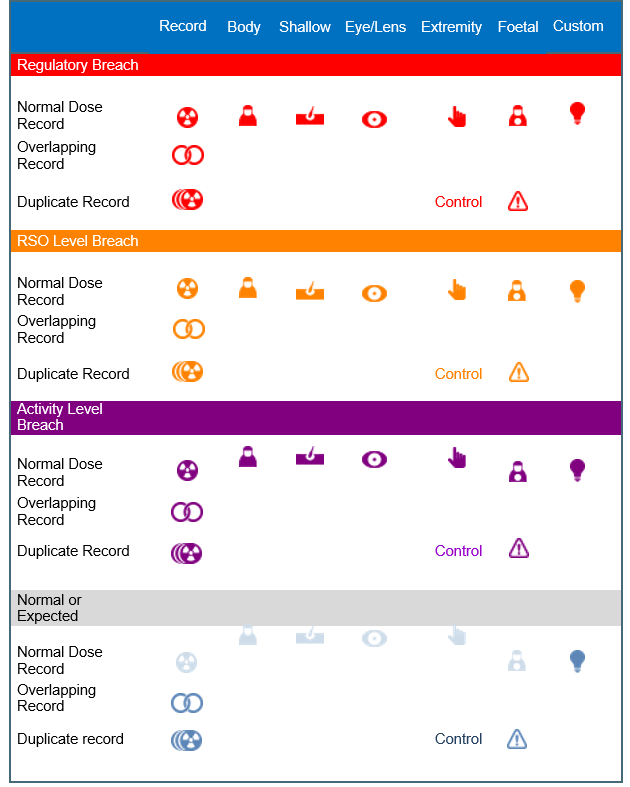

Dose Indicators
In the first column are the Record Status Indicator Icons, followed by Dose Application Indicator Icons.
.png)
* The Control Dose Application Indicator Icons are also used for Area, Room and Unknown Readings
The Dose Indicator table above is further expanded into individual icon definitions below.
Dose Reading Data Quality Status Symbols
The Dose Record Status Icon appears in the first column after the Dose Reading View link in the Dose Report Details tab and the Dose Reading View link in the Wearer Details tab. It provides an immediate indication as to whether the Dose Reading is a discrete Dose Reading, a Duplicated Dose Reading or an Overlapping Dose Reading.
The Dose Record Status Icon is colour coded the same colour as the Dose Application Icon for the same row. Colour coding of the Dose Record Status and the Dose Application Icon are in accordance with the severity and priority of the Dose Reading as evaluated against pre-set Dose Alert levels and criteria. The Dose Indicator Table above is expanded and specific definitions provided here;
The following Dose Record Status is indicated for Dose Readings not Overlapping or Duplicated;
.png) High Importance, investigation is mandatory (Regulatory Breach)
.png) Important, investigation is recommended (RSO Level Breach)
.png) Activity Level Breach, investigation is optional
.png) Normal or Expected Dose, record keeping only, investigation not required
The following Dose Record Status is indicated for Dose Readings that are Overlapping Readings;
.png) High Importance, investigation is mandatory (Regulatory Breach), Dose Overlap present
.png) Important, investigation is recommended (RSO Level Breach), Dose Overlap present
.png) Activity Level Breach, investigation is optional, Dose Overlap present
.png) Normal or Expected Dose, record keeping only, investigation not required, Overlap present
The following Dose Record Status is indicated for Dose Readings that are Duplicated Readings;
.png) High Importance, investigation is mandatory (Regulatory Breach), Dose Duplicate present
.png) Important, investigation is recommended (RSO Level Breach), Dose Duplicate present
.png) Activity Level Breach, investigation is optional, Dose Duplicate present
.png) Normal or Expected Dose, record keeping only, investigation not required, Duplicate presents
Reading Dose Application Icons
The Dose Application Icon appears in the second column after the Dose Reading View link in the Dose Report Details tab and the Dose Reading View link in the Wearer Details tab. It provides an immediate indication as to the type of Dose Reading and Monitored Body Region.
The Dose Application Icon is colour coded the same colour as the Dose Record Status Icon for the same row. Colour coding of the Dose Application and the Dose Record Status Icon are in accordance with the severity and priority of the Dose Reading as evaluated against pre-set Dose Alert levels and criteria. The Dose Indicator Table above is expanded and specific definitions provided here;
.png) High Importance Dose to the Body, investigation is mandatory (Regulatory Breach)
.png) Important Dose to the Body, investigation is recommended (RSO Level Breach)
.png) Activity Level Breach Dose to the Body, investigation is optional
.png) Normal or Expected Dose to the Body, record keeping only, investigation not required
The following Dose Application icons are displayed for Skin, Hp(0.07) or Shallow Doses;
.png) High Importance Shallow (Skin) Dose, investigation is mandatory (Regulatory Breach)
.png) Important Shallow (Skin) Dose, investigation is recommended (RSO Level Breach)
.png) Activity Level Breach Shallow (Skin) Dose, investigation is optional
.png) Normal or Expected Shallow Dose, record keeping only, investigation not required
The following Dose Application icons are displayed for Eye, Hp(3) or Lens Doses;
.png) High Importance Eye (Lens) Dose, investigation is mandatory (Regulatory Breach)
.png) Important Eye (Lens) Dose, investigation is recommended (RSO Level Breach)
.png) Activity Level Breach Eye (Lens) Dose, investigation is optional
.png) Normal or Expected Eye (Lens) Dose, record keeping only, investigation not required
The following Dose Application icons are displayed for Extremity Hp(0.07) Doses;
.png) High Importance Extremity Dose, investigation is mandatory (Regulatory Breach)
.png) Important Extremity Dose, investigation is recommended (RSO Level Breach)
.png) Activity Level Breach Extremity Dose, investigation is optional
.png) Normal or Expected Extremity Dose, record keeping only, investigation not required
The following Dose Application icons are displayed for Pregnancy or Foetal Hp(10) Doses;
.png) High Importance Foetal Dose, investigation is mandatory (Regulatory Breach)
.png) Important Foetal Dose, investigation is recommended (RSO Level Breach)
.png) Activity Level Breach Foetal Dose, investigation is optional
.png) Normal or Expected Foetal Dose, record keeping only, investigation not required
The following Dose Application icons are displayed for Custom (RSO Defined) Doses;
.png) High Importance Custom (RSO) Dose, investigation is mandatory (Regulatory Breach)
.png) Important Custom (RSO) Dose, investigation is recommended (RSO Level Breach)
.png) Activity Level Breach Custom (RSO) Dose, investigation is optional
.png) Normal or Expected Custom (RSO) Dose, record keeping only, investigation not required
The following Dose Application icons are displayed for Control, Room, Area and Unknown Doses;
.png) High Importance Control or Area Dose, investigation is mandatory (Regulatory Breach)
.png) Important Control or Area Dose, investigation is recommended (RSO Level Breach)
.png) Activity Level Breach Control or Area Dose, investigation is optional
.png) Normal or Expected Control or Area Dose, record keeping only, investigation not required
The File Note Icon
The File Note Attachment Icon
|
